Gigabyte Ud850gm - Strømforsyning (Intern) - Atx12v 2.31/ Eps12v - 80 Plus Gold - Ac 100-240 V - 850 Watt - Aktiv Pfc
Gigabyte Ud850gm - Strømforsyning (Intern) - Atx12v 2.31/ Eps12v - 80 Plus Gold - Ac 100-240 V - 850 Watt - Aktiv Pfc
Gigabyte Ud850gm, 850 W, 100 - 240 V, 50/60 Hz, 12 A, 6 A, Aktiv
Gigabyte Ud850gm, 850 W, 100 - 240 V, 50/60 Hz, 12 A, 6 A, Aktiv

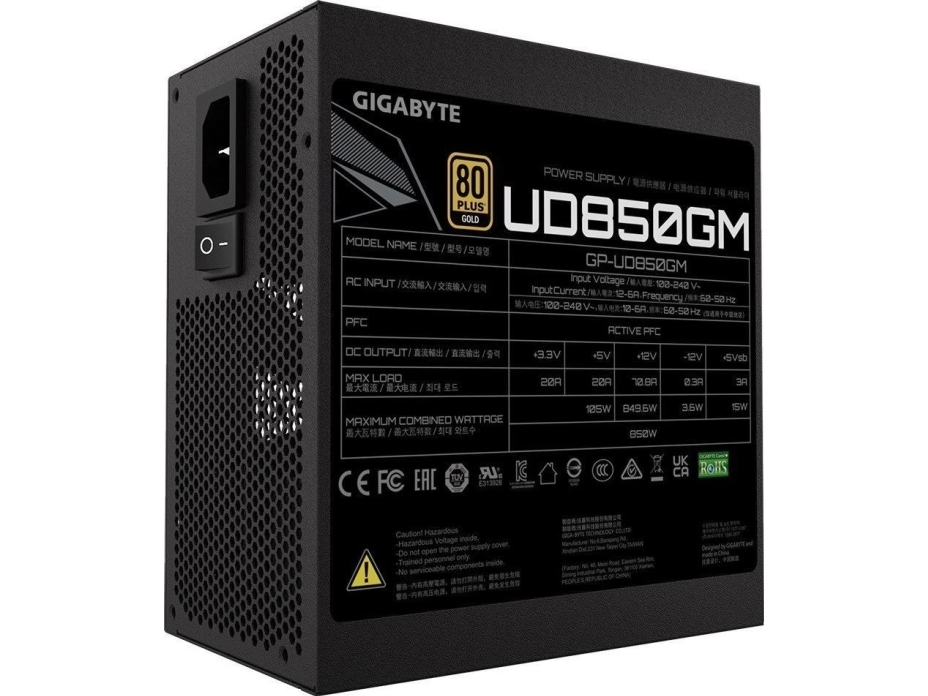

Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
Fan location: Top Cooling type: Active On/off switch: Yes Product colour: Black Fan diameter: 12 cm Number of fans: 1 fan(s) AC input frequency: 50 - 60 Hz Total power: 850 W Efficiency: 90% Power factor: 0.9 Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Over current AC input voltage: 100 - 240 V Max output current (+3.3V): 20 A Combined power (+5Vsb): 15 W Maximum input current (@220V): 6 A Combined power (-12V): 3.6 W Hold time: 16 ms Combined power (+5V): 120 W Max output current (+5Vsb): 3 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 105 W Combined power (+12V): 849.6 W Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+12V): 70.8 A Maximum input current (@110V): 12 A Depth: 140 mm Width: 150 mm Height: 86 mm Power supply unit (PSU) form factor: ATX 80 PLUS certification: 80 PLUS Gold Mean time between failures (MTBF): 100000 h Purpose: PC ATX version: 2.31 Package type: Box Cabling type: Fully-Modular Floppy disk drive connector: Yes PCI Express power connectors (6+2 pin): 4 Peripheral (Molex) power connectors (4-pin): 3 ATX power connector (20+4 pin): Yes Number of SATA power connectors: 8 Motherboard power connector: 20+4 pin ATX CPU power cable length: 60 cm Motherboard power cable length: 61 cm Floppy drive power connector: 2 CPU power connector (4+4 pin): Yes Harmonized System (HS) code: 84733020
Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black
Fan location: Top Cooling type: Active On/off switch: Yes Product colour: Black Fan diameter: 12 cm Number of fans: 1 fan(s) AC input frequency: 50 - 60 Hz Total power: 850 W Efficiency: 90% Power factor: 0.9 Power protection features: Short circuit, Over voltage, Over power, Overheating, Under voltage, Over current AC input voltage: 100 - 240 V Max output current (+3.3V): 20 A Combined power (+5Vsb): 15 W Maximum input current (@220V): 6 A Combined power (-12V): 3.6 W Hold time: 16 ms Combined power (+5V): 120 W Max output current (+5Vsb): 3 A Power Factor Correction (PFC) type: Active Combined power (+3.3V): 105 W Combined power (+12V): 849.6 W Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+12V): 70.8 A Maximum input current (@110V): 12 A Depth: 140 mm Width: 150 mm Height: 86 mm Power supply unit (PSU) form factor: ATX 80 PLUS certification: 80 PLUS Gold Mean time between failures (MTBF): 100000 h Purpose: PC ATX version: 2.31 Package type: Box Cabling type: Fully-Modular Floppy disk drive connector: Yes PCI Express power connectors (6+2 pin): 4 Peripheral (Molex) power connectors (4-pin): 3 ATX power connector (20+4 pin): Yes Number of SATA power connectors: 8 Motherboard power connector: 20+4 pin ATX CPU power cable length: 60 cm Motherboard power cable length: 61 cm Floppy drive power connector: 2 CPU power connector (4+4 pin): Yes Harmonized System (HS) code: 84733020
